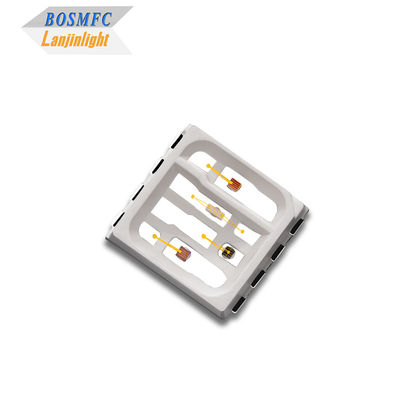

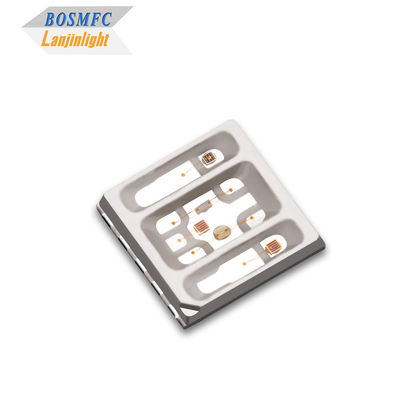

RGBYIR & 1064nm 5050 SMD multi-Color LED for Phototherapy Facial Mask
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | BOSMFC |
| Certification: | Rohs, Reach |
| Numéro de modèle: | 5050 SMD LED IR |
Conditions de paiement et expédition:
| Quantité de commande min: | 1000pcs |
|---|---|
| Détails d'emballage: | 1000 pièces par bobine, bobine + sac antistatique + carton |
| Délai de livraison: | 5-15 jours |
| Conditions de paiement: | T / T, Western Union, Paypal |
| Capacité d'approvisionnement: | 500KK/mois |
|
Détail Infomation |
|||
| Pouvoir: | 1 W | Couleur émettant: | lumière menée infrarouge |
|---|---|---|---|
| Longueur d'onde: | 410/460/630/590/660/830/850/940NM | Courant vers l'avant: | 60mA |
| Tension vers l'avant: | 1.8-2.4v/1.3-1.7v | Angle de vision: | 120 ° |
| Taille: | 5.4 * 5.0 * 1,0 mm | Durée de vie: | 50 000 heures |
| Garantie: | 3 ans | marque de puce: | Puce San'an / puce Epistar |
| Emballer: | 1000pcs / bobine | ||
Description de produit
RGBYIR & 1064nm 5050 SMD multi-Color LED for Phototherapy Facial Mask
This advanced phototherapy mask features 5050 SMD LEDs with a unique RGBYIR & 1064nm multi-wavelength system. It delivers comprehensive skin treatment: red for anti-aging, blue for acne, green/yellow for soothing, and IR/1064nm for deep tissue repair. An all-in-one solution for professional rejuvenation and healing at home
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Low-temp & lead free reflow soldering
- Instant light(less than 100ns)
- RoHS certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 630nm
850nm 410nm 590nm |
--- |
10 30 2.5 9 |
--- | LM
mW LM LM |
IF=60mA |
| Dominant wavelength | 630nm
850nm 410nm 590nm |
620
840 400 585 |
--- | 635
860 420 595 |
nm | IF=60mA | |
| Forward voltage | VF | 630nm
850nm 410nm 590nm |
1.8
1.3 3.0 1.8 |
--- | 2.4
1.7 3.4 2.4 |
V | IF=60mA |
| Viewing angle | --- | 120 | --- | deg | IF=60mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=60mA |
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 830nm
625nm 590nm 410nm 1050 |
--- |
25 10 9 2.5 10 |
--- | mW
LM LM LM mW |
IF=60mA |
| Dominant wavelength | 830nm
625nm 590nm 410nm 1050 |
825
620 590 410 1040 |
--- | 830
625 595 415 1090 |
nm | IF=60mA | |
| Forward voltage | VF | 830nm
625nm 590nm 410nm 1050 |
1.3
1.8 2.0 3.0 1.4 |
--- | 1.7
2.4 2.4 3.4 1.6 |
V | IF=60mA |
| Viewing angle | --- | 120 | --- | deg | IF=60mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=60mA |
| Operation Temperature | －40~+85℃ | Size | 5.4*5.0*1.1mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Customized Multi-color combined: 630+660+850nm ;
625+520+460+590nm;
625+850+460+590nm;
830+625+590+415+1050nm
Applications:
1. Beauty therapy lamp.
2.Wound healing lamp
3. Oxygen injector
4. Hair remover
3. Other medical device, like Oximeter
